From Workpiece Loading to Finished Surface: Inside a Centerless Grinding Application

A finished surface is the result of many controlled steps. In a centerless grinding application, the workpiece must be guided steadily, supported along its length and presented to the grinding zone with the right process conditions. The supplied photographs offer a close look at this practical part of production.

Stable support for long workpieces

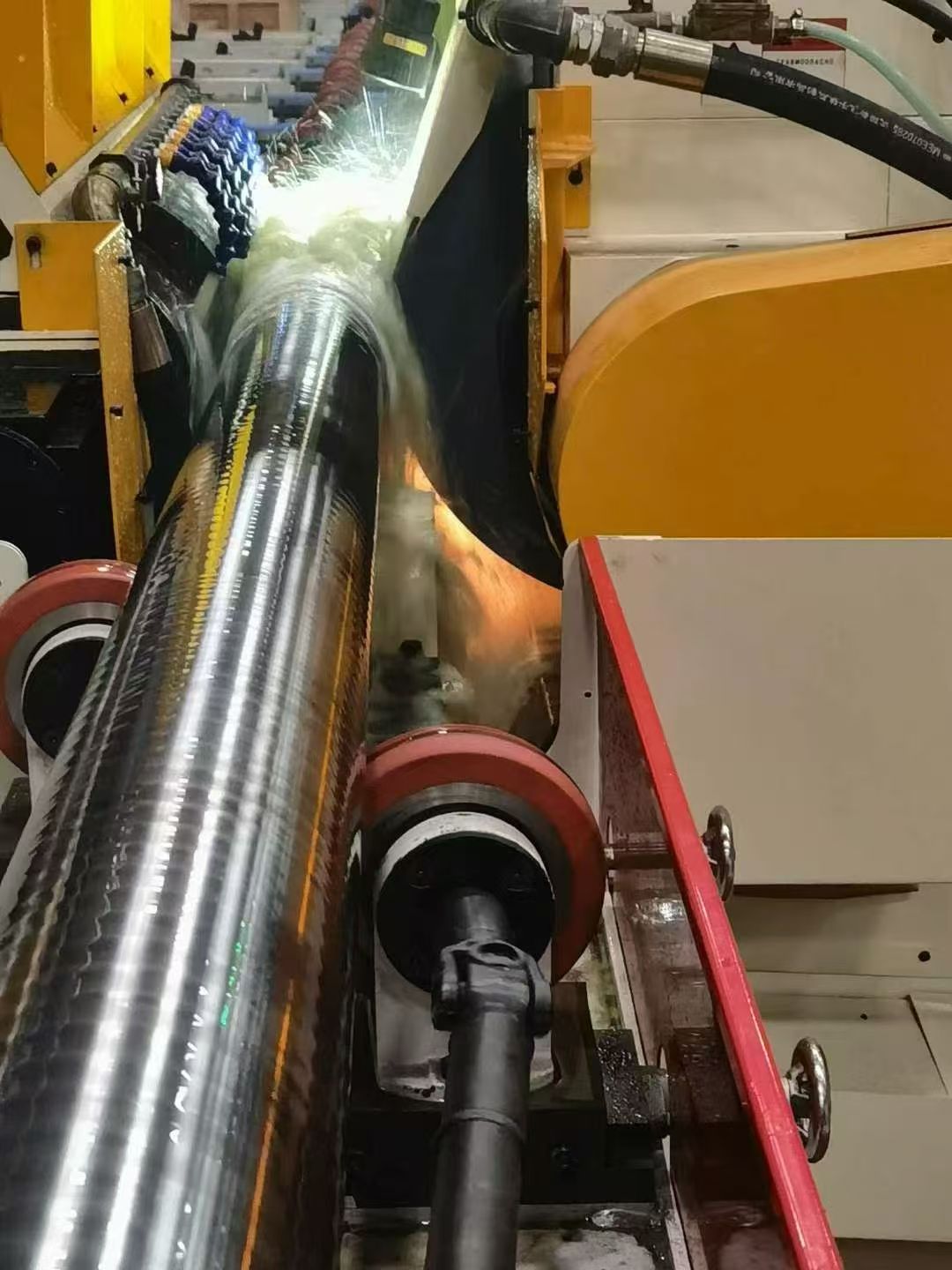

The line shown in the photographs uses a series of roller supports to guide a long cylindrical component. This arrangement helps maintain a continuous workpiece path and reduces the need for repeated manual repositioning. For production teams, stable conveying is important not only for surface quality, but also for predictable loading and unloading.

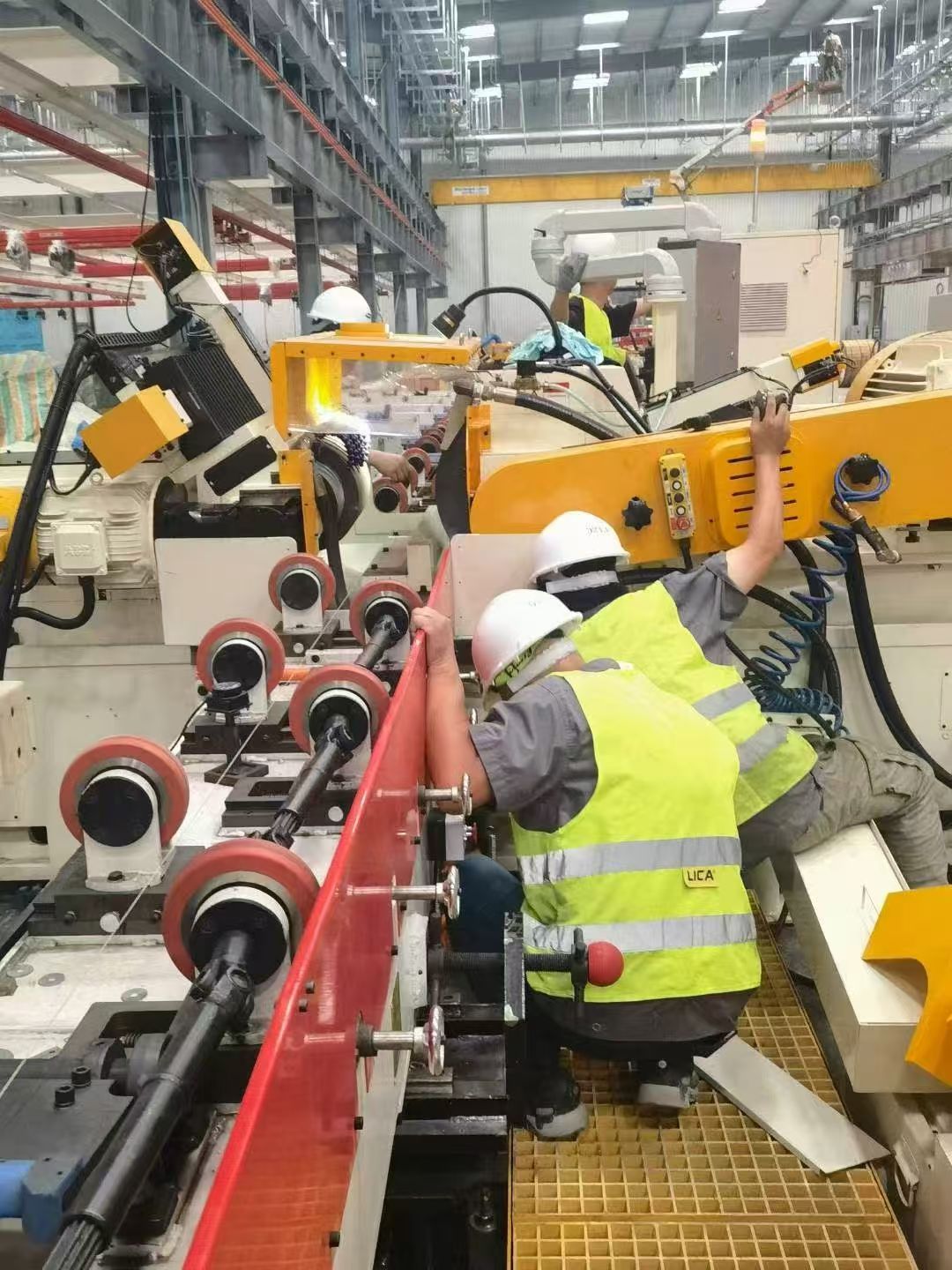

The red support assemblies, adjustable fixtures and extended roller path are all part of the production conversation. Their final settings depend on the workpiece geometry, material, process route and required finish, so the line should be configured around the actual application rather than treated as a one-size-fits-all setup.

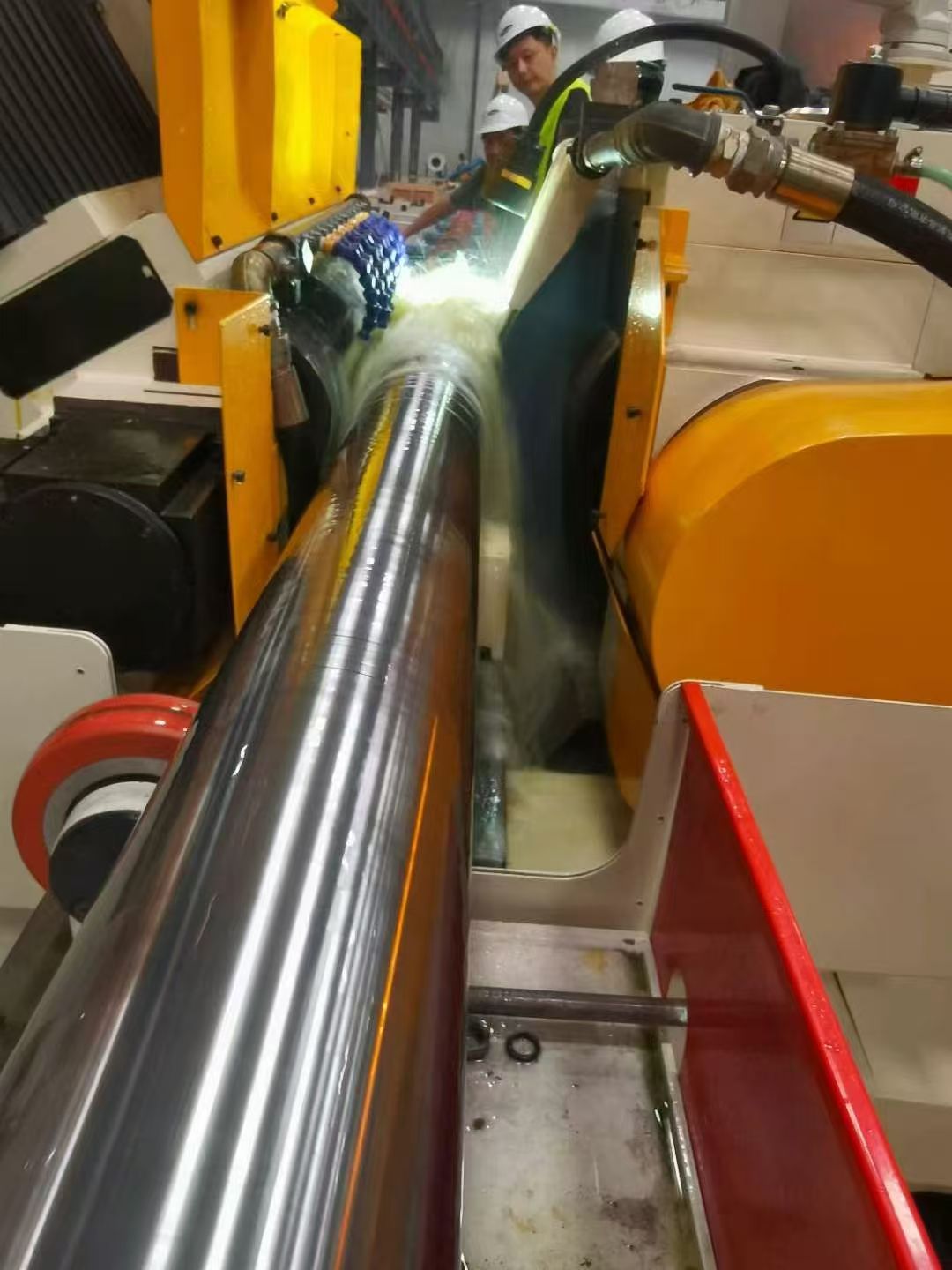

Coolant and the grinding zone

Controlled coolant flow helps manage heat and supports a cleaner, more consistent process. During commissioning, engineers check the direction and coverage of the coolant, the workpiece position and the operator access around the enclosure.

These details matter because a high-quality machine must also be practical to run. Clear access, visible controls and a well-organized work area make routine inspection and adjustment easier for the operator.

A process designed around production

Centerless grinding is most effective when machine, handling and operator workflow are considered together. The goal is a repeatable process that can be monitored, adjusted and maintained without unnecessary interruption. This is why application discussions should begin with the workpiece and production requirement, then move to equipment selection and line design.

Huanyi Intelligent provides CNC grinding equipment and automation integration for manufacturers processing precision cylindrical components. Share your workpiece dimensions, material and target production flow with our team, and we can help evaluate the next step.
